300Pcs Heat Shrink Butt Connector Solder Seal Wire Sleeve Connector Waterproof Insulated Electric Butt Splice Wire Terminals

*Features*:

• *Perfect Wire Contact*:Copper barrel decreases voltage drop and provides increased current flow,preventing wiring failures and reducing equipment downtime. Your wire will never slip out of the connector for the thick barrel ensuring strong crimp.
• *IP65 Waterproof*:This wire connector kit is IP65 waterproof, great for applications such as marine, boats, trailers, cars and other demanding electrical applications. Install wire connectors heat shrink and then apply a heat source,then it will create a water & moisture proof connection.

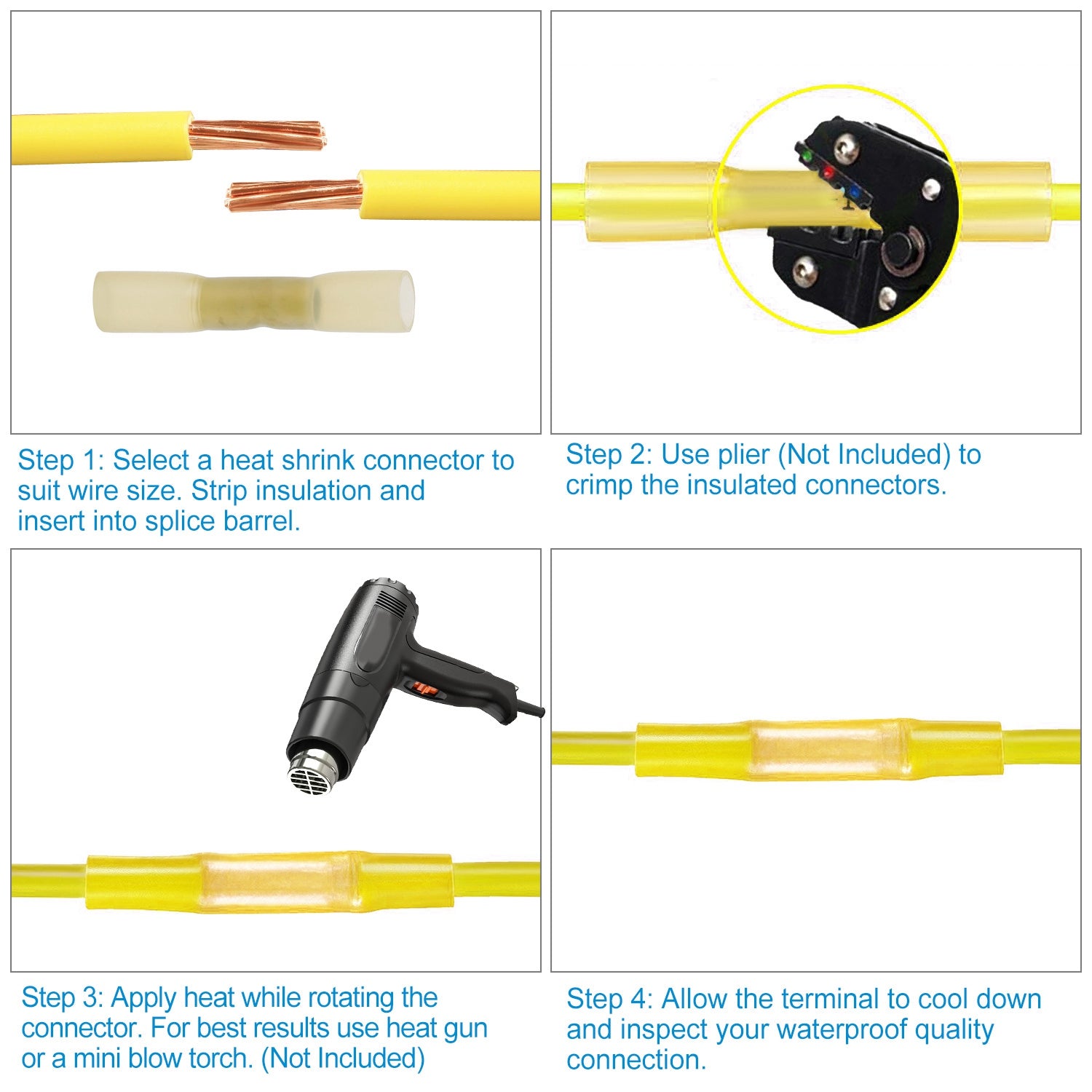

• *Easy & Fast Process*:All-in-one step solder and seal process. Fit for confined and narrow spaces. It can be bent after connection and no need for crimp tools and soldering machine, just control the temperature via a heat gun.
• *Insulated Well*:The Solder Seal Wire Connectors do not decrease in length, creating better insulation alongside with most reliable wire support and pressure relief.
• *Multi-Taking Pack*:This electrical terminal kit includes 300pcs shrink connectors, including 3 different sizes, fitting your needs and helping you balance between quality and cost.

*Specifications*:

• Product Type: Solder Seal Wire Connectors
• Color: Red, Blue, Yellow
• Gauge: AWG
• Material: PE, Tinned Copper
• Waterproof Rating: IP65

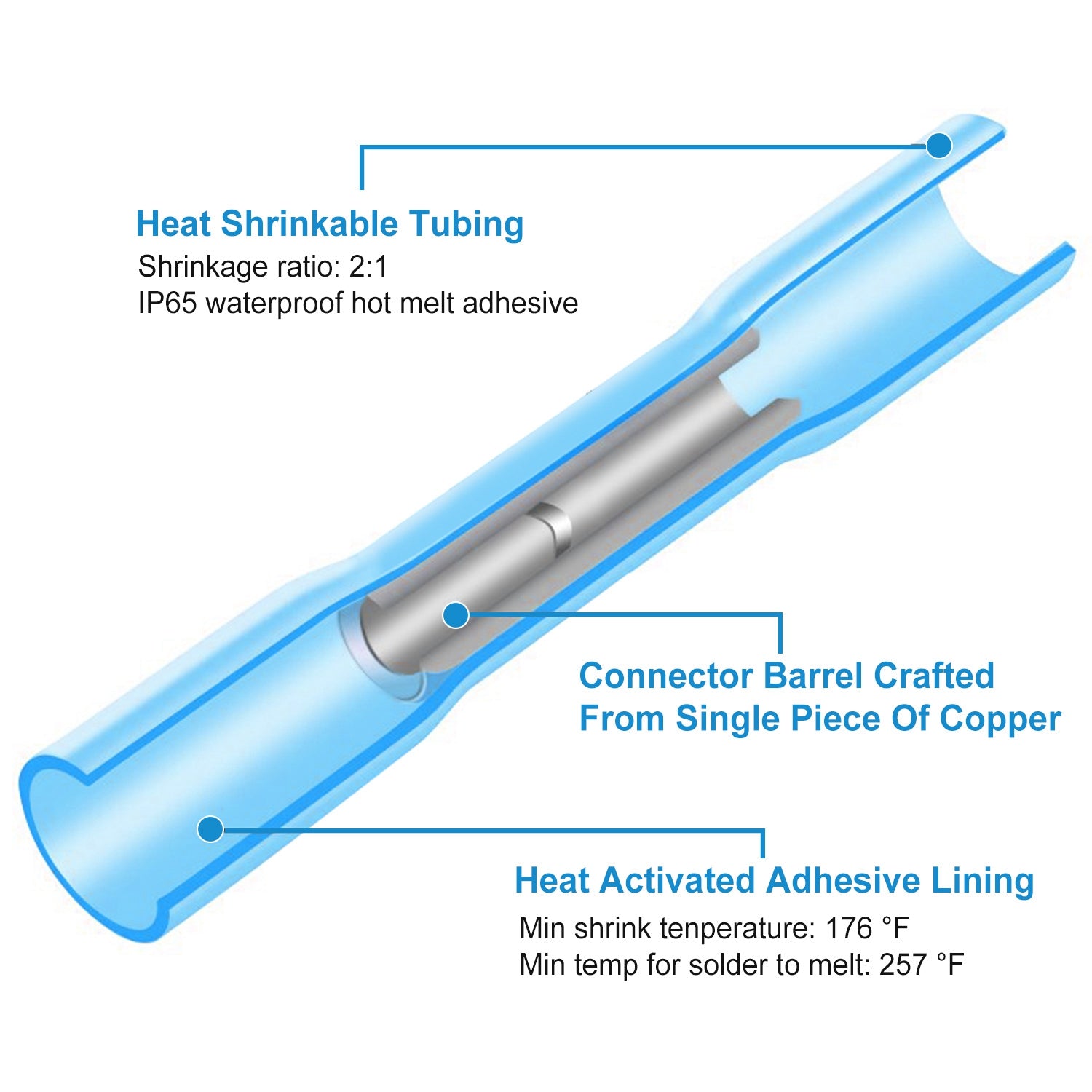

• Shrinkage Ratio 2:1
• Minimum Shrinking Temperature: 176 °F / 80 °C
• Minimum Melting Temperature for Solder: 257 °F / 125 °C
• Item Weight: 358g/ 0.79lbs
• Item Dimension:

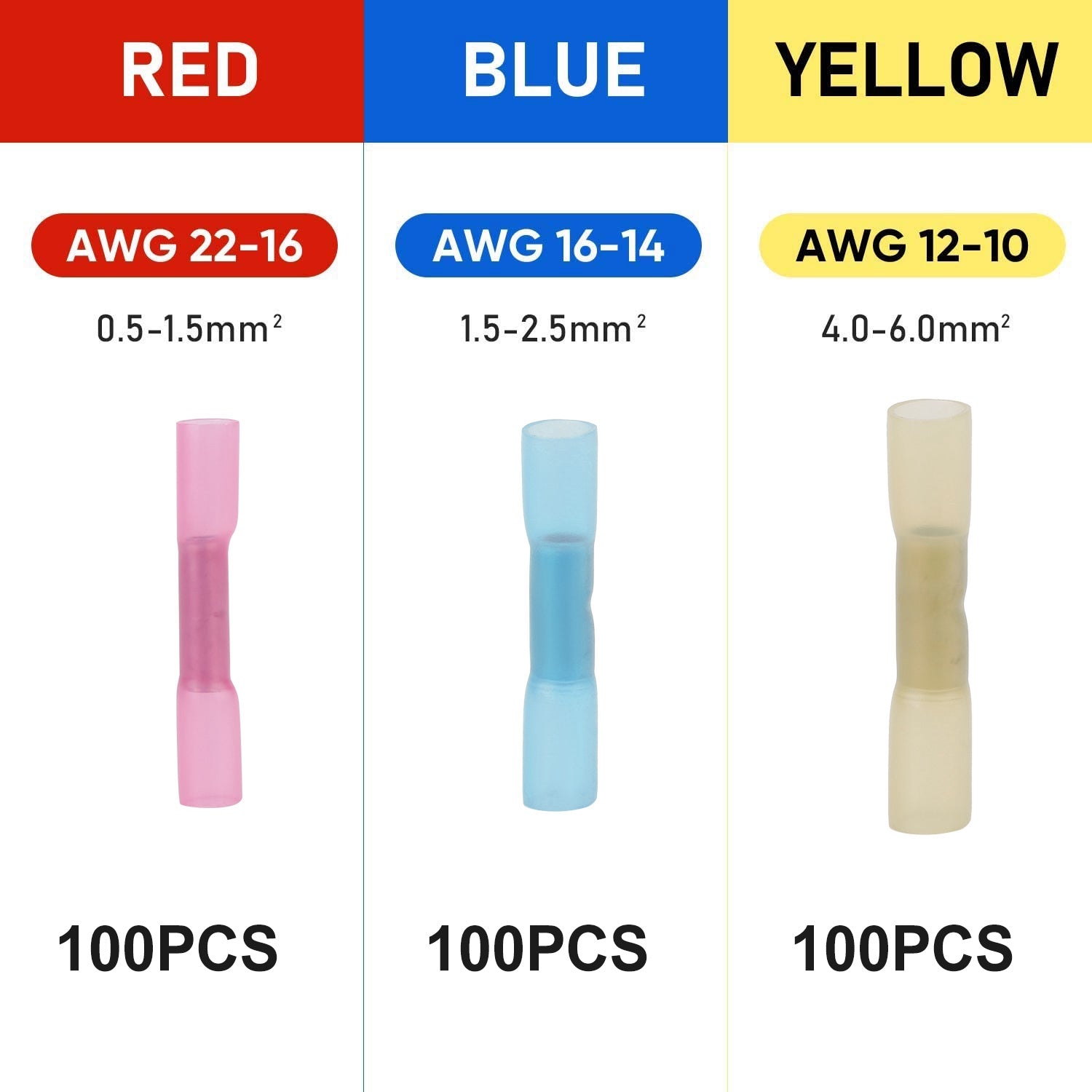

• Red Shrink Connectors: Diameter of Copper Pipe: 1.68 mm, Inner Diameter of Heat Shrink Tube: 4.75mm, Cable Cross-section: 0.5-1.5 mm²(A.W.G:22-16)
• Blue Shrink Connectors: Diameter of Copper Pipe: 2.26mm, Inner Diameter of Heat Shrink Tube: 5.67mm, Cable Cross-section: 1.5-2.5 mm²(A.W.G:16-14)
• Yellow Shrink Connectors: Diameter of Copper Pipe: 3.68 mm, Inner Diameter of Heat Shrink Tube: 6.93mm, Cable Cross-section: 4.0-6.0 mm²(A.W.G:12-10)
• Package Size: 24 x 16 x 4.5cm/ 9.45 x 6.3 x 1.77in
• Package Weight: 362g/ 0.8lbs

*Package Lists*:

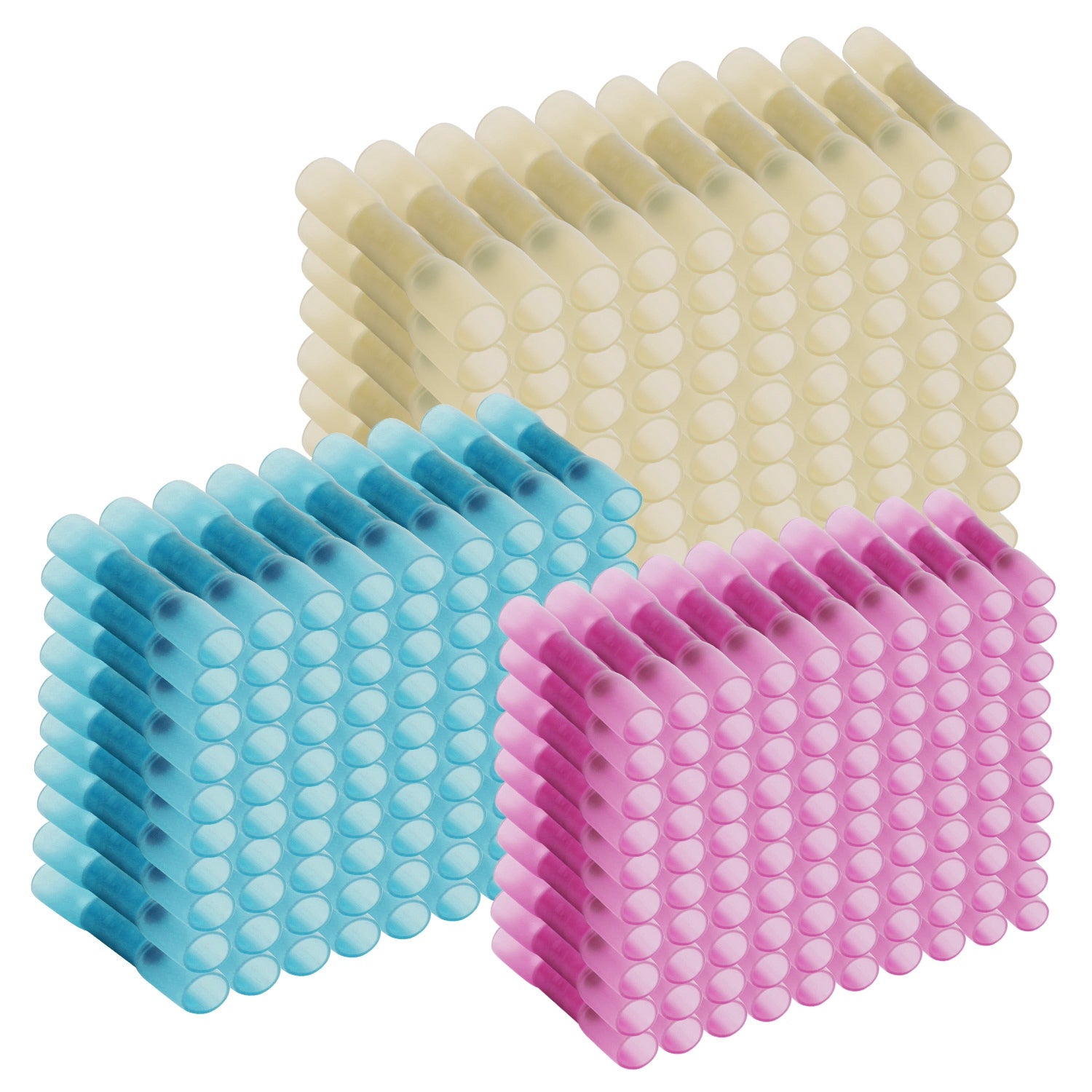

• 100 x Red Shrink Connectors
• 100 x Blue Shrink Connectors
• 100 x Yellow Shrink Connectors
• 1 x User Manual
