10 Pairs Solar Panel Connectors Solar Wire Adapter Male/Female IP67 Waterproof Connector Solar Panel Wire Connector

*Features*:

• *Excellent Conductivity: Comes with 1000V maximum pressure, 30A maximum current, copper tin-plated conductive core attributes to an excellent conductivity.

• *Solar Panel Connectors: Our connectors are designed for connect solar panels arrays and also specially designed to connect photovoltaic solar systems with high mechanical requirements and extreme weather conditions.

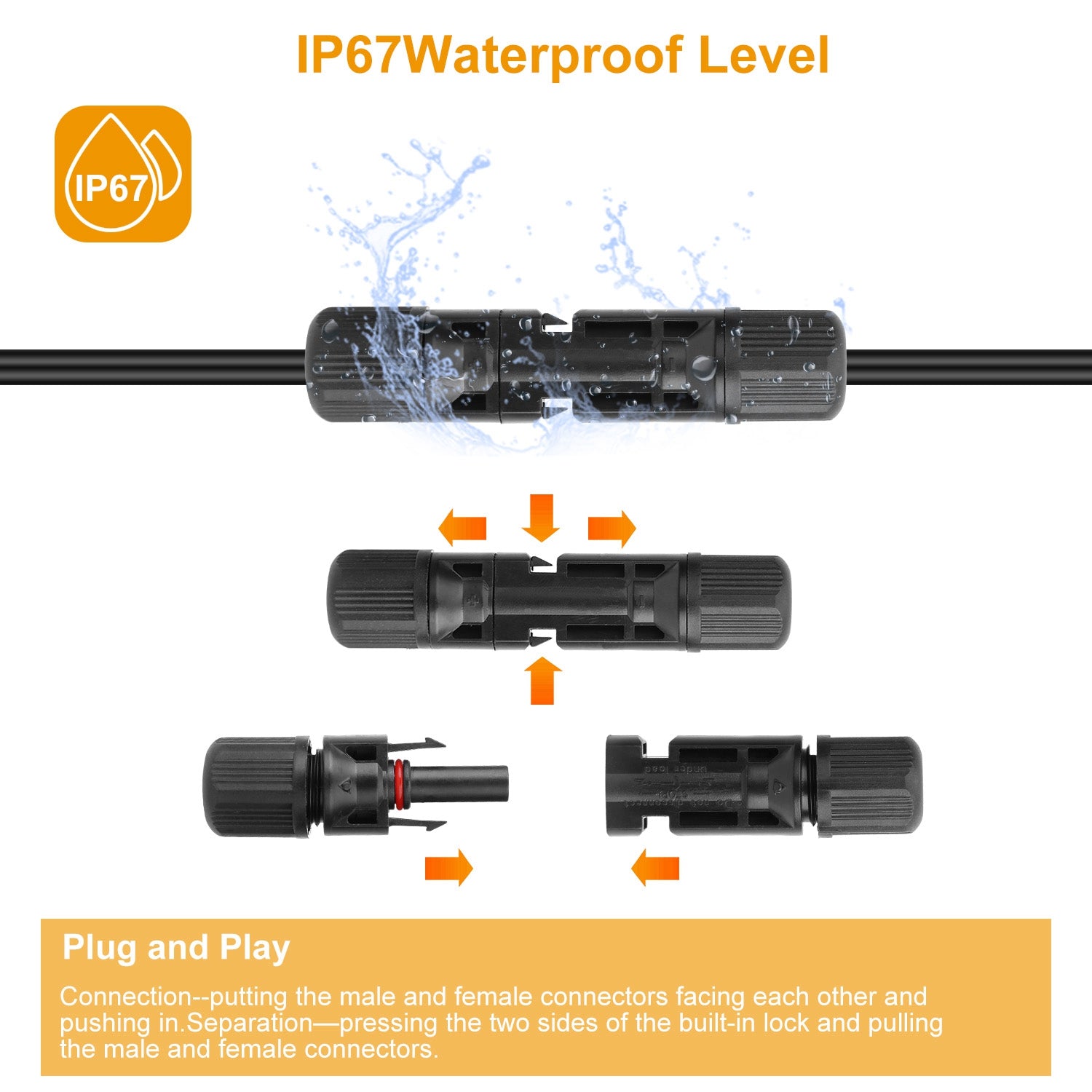

• *Premium Material: The shell is made of hard plastic material which is high heat resistant, wear resistant and high insulation. And with its IP67 waterproof performance, it can be used in rainy or snowy day.

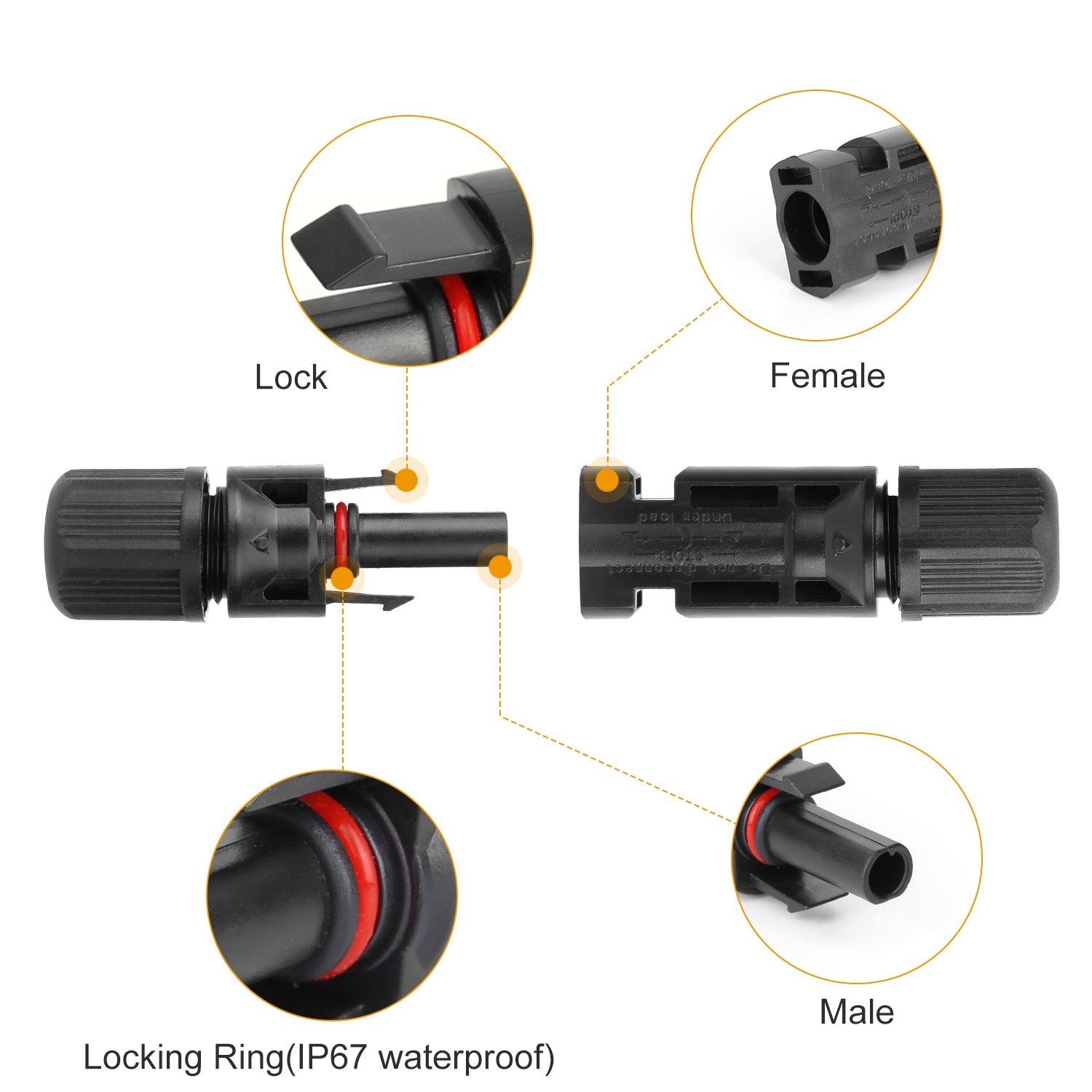

• *Solar Male/Female Connector: Comes with 10 pairs solar panel connector (10pcs male & 10pcs female), which is compatible with different insulation diameters.

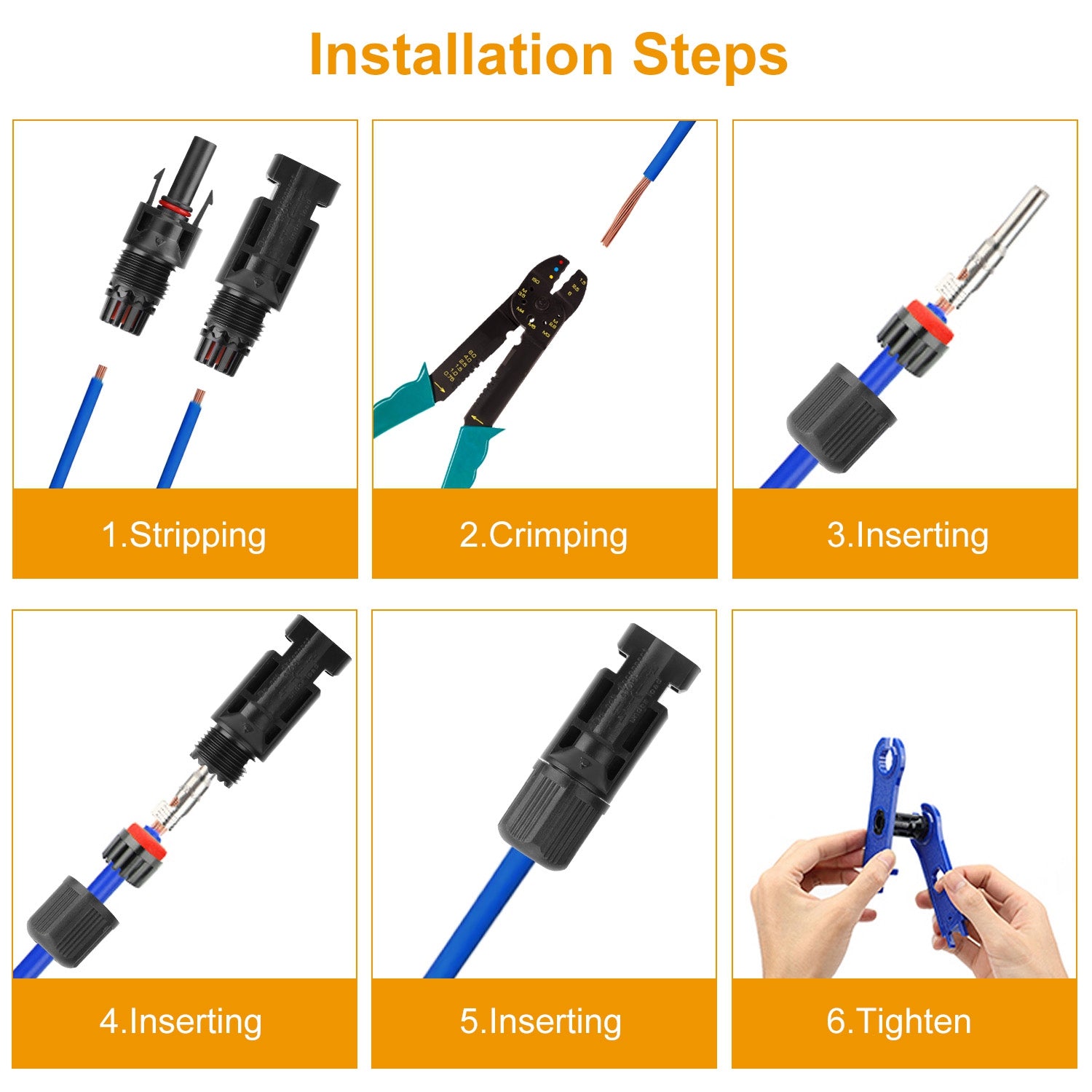

• *Easy Installation: These solar panel connectors can be quick and simple assembled or removal. You can follow our user manual or surf on the internet to find some installation video.

*Specifications*:

• Rated Voltage: 1000V DC (IEC)
• Rated Current: 17A (1.5mm²); 22A(2.5mm²; 14AWG); 30A(4mm², 6mm²; 12AWG, 10AWG)
• Test Voltage: 6KV (50HZ, 1Min)
• Ambient Temperature Range: -40℃～90℃/-40℉～194℉(IEC); -40℃～75℃/-40℉～167℉(UL)
• Upper Limiting Temperature: 105℃/221℉(IEC)
• Degree of Protection: IP67
• Contact resistance: 0.5Mω
• Safety Class: Ⅱ
• Contact Material: Messing, Verzinnt Copper Alloy,Tin Plated
• Insulation Material: PC/PPO
• Locking System: Snap-in
• Flame Class: UL-94-V0
• Salt Mist Spray Test: IEC 60065-2-52

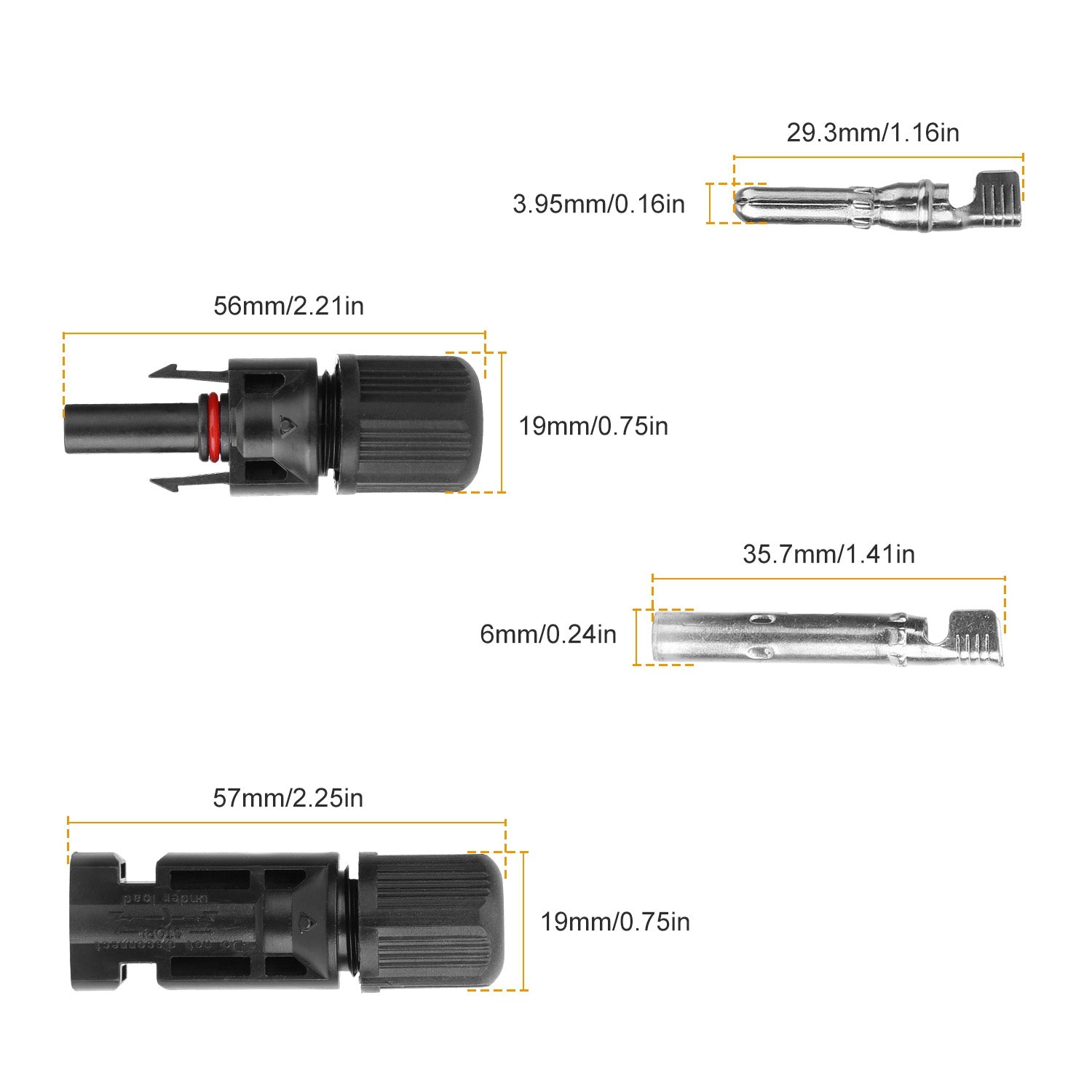

• Item Size (Single):
• 2.21x0.75x0.75in (Male); 2.25x0.75x0.75in (Female)
• Item Weight (Single): 8g/0.018lbs (Male); 9.0g/0.02lbs (Female)
• Package Size: 24x16x3㎝/9.45x6.30x1.18in
• Package Weight: 231g/0.51lbs

*Package Lists*:

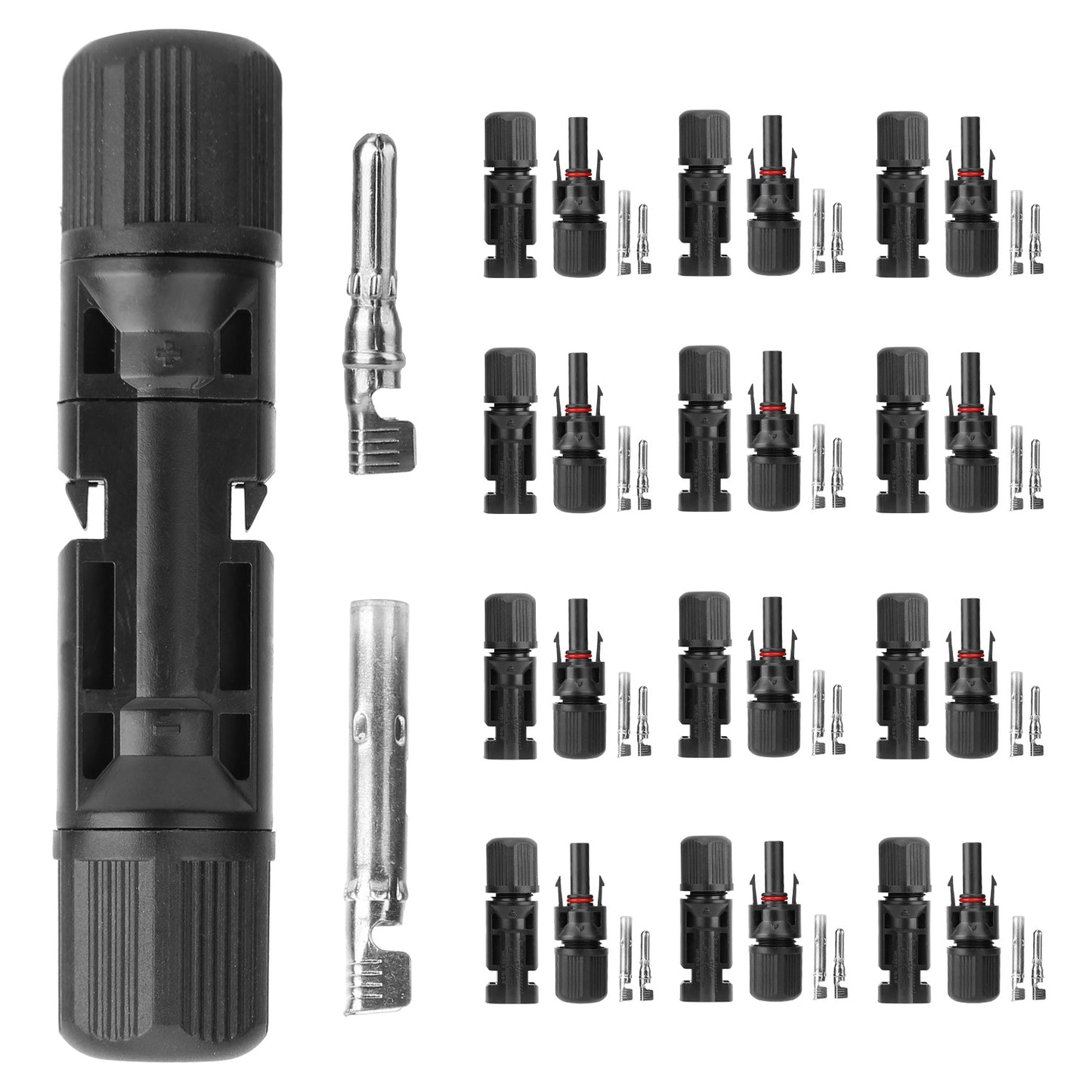

•  10x Pairs of Wire Connectors
•  1x User Manual
