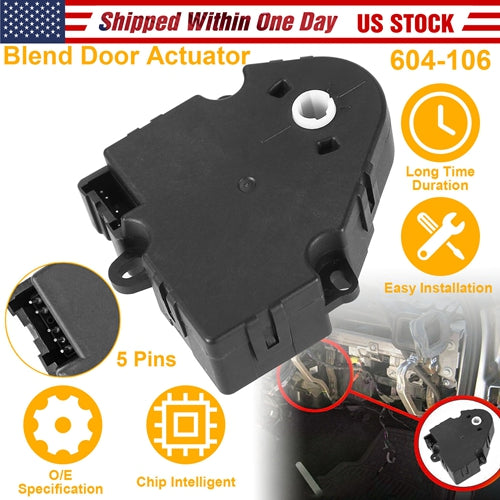

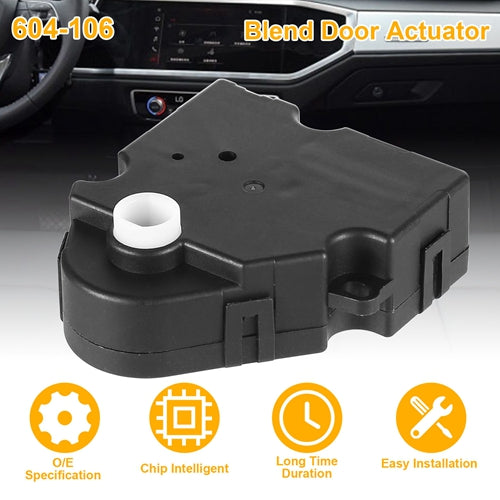

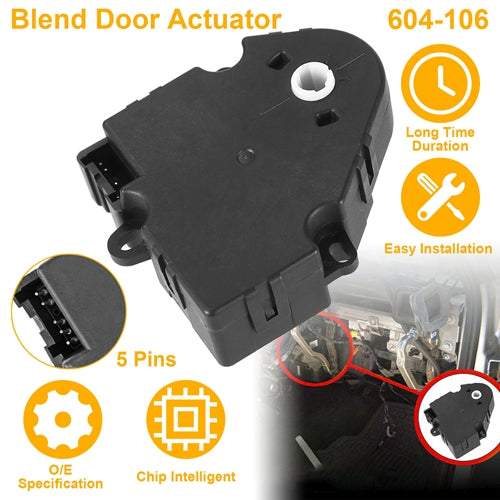

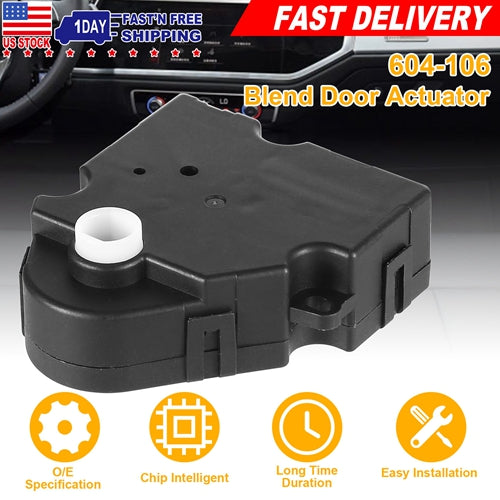

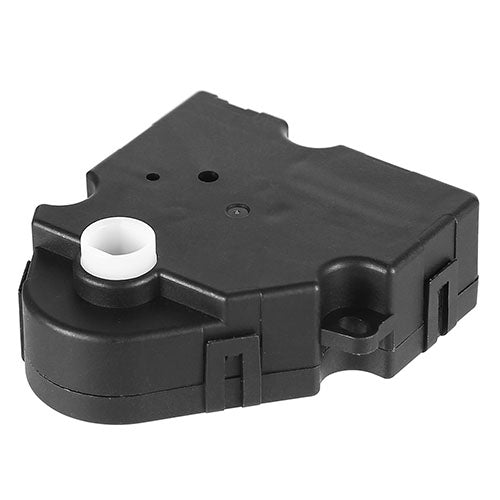

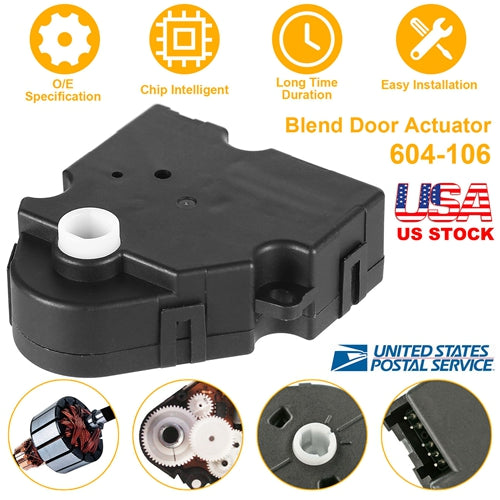

HVAC Heater Air Blend Door Actuator 604-106 For Chevy Silverado GMC Heater Actuator

*Features:*
**APPLICABLE VEHICLES’ TYPES*:
Blend Door Actuator for Chevrolet Tahoe/GMC Sierra/GMC Sierra/Silverado.

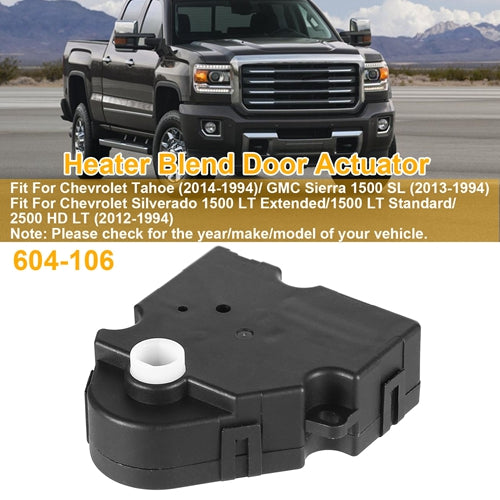

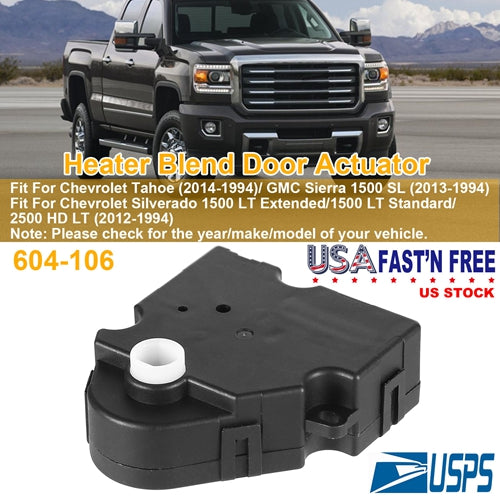

Fit For Chevrolet Tahoe PPV Sport Utility 4-Door(2014-1994) Fit For GMC Sierra 1500 SL Crew Cab Pickup 4-Door(2013-1994) Fit For Chevrolet Silverado 1500 LT Extended Cab Pickup 4-Door(2012-1994) Fit For Chevrolet Silverado 1500 LT Standard Cab Pickup 2-Door(2012-1994) Fit For Chevrolet Silverado 2500 HD LT Cab & Chassis 2-Door(2012-1994)
**DIRECT REPLACEMENT & EASY INSTALLATIONS*:
Our air door actuator fit for factory one. Replace the blend door actuator whose interchange part number is 16163982/15-72971/52402588/ 52402598/52402612/604-106.
**CONTROLTHE AIR FLOW & TEMPERATURE*:
Specifically design can control the flow and the temperature of air into the interior of vehicle.
**WARM TIPS*:
In order to buy the correct items,please check for the year/make/model of your vehicle.
**PREMIUM & STURDY MATERIALS*:
Upgraded motor and internal circuit board increase durability and usability.
HOW TO INSTALL:
Before installation,make sure the ignition key and (Heating,Ventilation and Air Conditioning) control switch are in the OFF position,in order to avoid damaging the new Air Door Actuator.
1. Position the air door actuator onto the plenum assembly of the(Heating,Ventilation and Air Conditioning) air distribution housing and install it.
2. Rotate the air door deflector shaft slightly to align the splines on the actuator output shaft with those on the blend door lever.
3. Align the mounting hole of air door actuator to the mounting column in the housing. Install screws that secure the air door actuator and tighten it.
4. Connect the(Heating,Ventilation and Air Conditioning) wire harness connector to the air door actuator.

*Specifications*:
Brand: iMounTEK
Product Type: Air Blend Door Actuator
Manufacture Part Number: 604-106
Interchange Part Number: 16163982, 15-72971, 52402588, 52402598, 52402612,
Materials: Plastic Shell Materials
Function Support: Temperature Blend Door (controls the temperature of air in the interior of the vehicle); Vent Mode (Responsible for directing air to different vents); Air Inlet (Allows for fresh air to enter vehicle cabin)
Operating Voltage: 8V-16V
Rated Voltage: 12V
Working Torque: 2.5N* M
Rated Speed: 3-5r/min
No-load Current: ≤35mA
Noise Decibel: ≤45dB

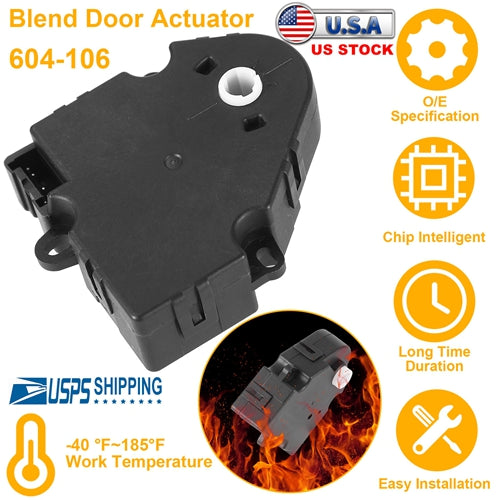

Working Temperature: -40°C~+85°C/-40 °F~185°F
Item Size: 9x8x3cm/3.54x3.14x1.18inches (L×W×H)
Item Weight: 118g/0.26lbs
Package Size: 9.3x8.6x4.2cm/3.66x3.38x1.65inches (L×W×H)
Package Weight: 146g/0.33lbs

*Package Lists*:
1x Air Blend Door Actuator
1x User Manual
